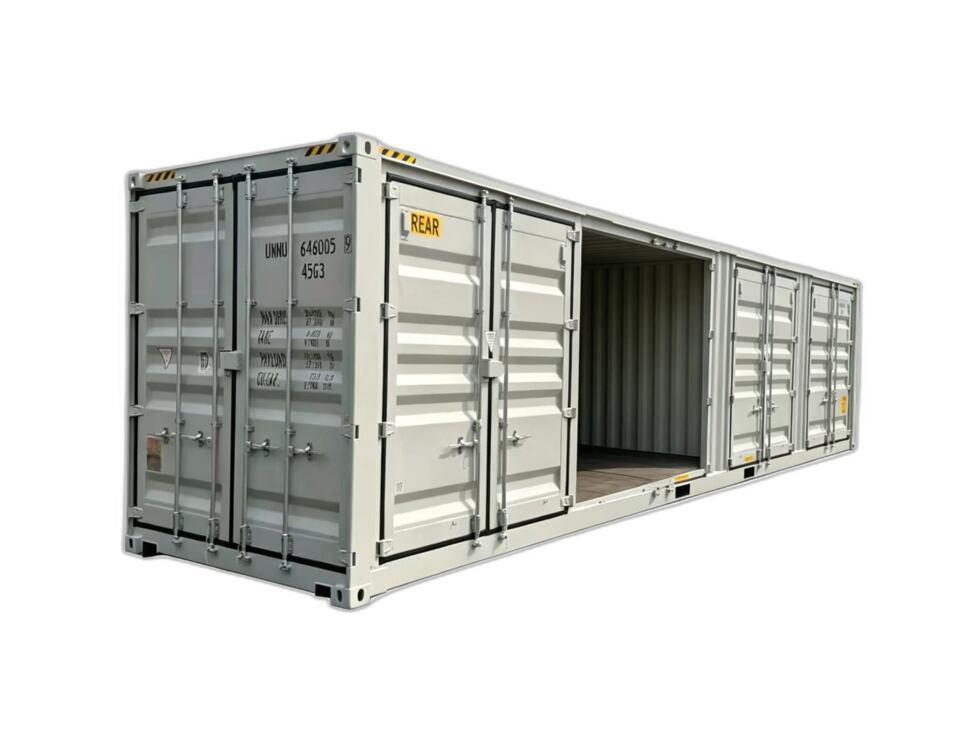

Four door sets open the full side wall at high-cube height, giving side-loading access across the whole length at the capacity of a 40HC. These are factory builds by definition and do not appear in depot stock.
| External | 12,192 × 2,438 × 2,896 mm |
| End door opening | 2,340 × 2,585 mm |
| Side access | Full-length · four door sets |
| Max gross | 30,480 kg |
| Tare / payload | Stated on the batch build sheet with your quotation |
| Capacity | ~75 m³ |
| Steel | Corten A / SPA-H / B480 |
| Floor | 28 mm hardwood ply, min. 19-ply |
| Door gasket | EPDM triple-lip · doors ~270° |
| Stacking | 8-high in marine cell guides |
| Environment | −30 °C to +80 °C |
| Certification | CSC · TIR · UIC · BICON; CCS/BV/ABS/LR/GL survey |
| Stacking | 97,200 kg / post |
| Floor | 7,260 kg wheel test |
| Racking (transverse) | 150,000 N |
| Weatherproofness | Spray per ISO 1496-1 |
| Survey | Every unit inspected |
| Guarantee | Per batch build sheet, stated on quotation |
Delivery runs first-trip by necessity. See why side-Door Units are difficult to ship.
Photos show an actual production unit. Serial numbers and factory stickers are the unit's own, left exactly as they arrive.

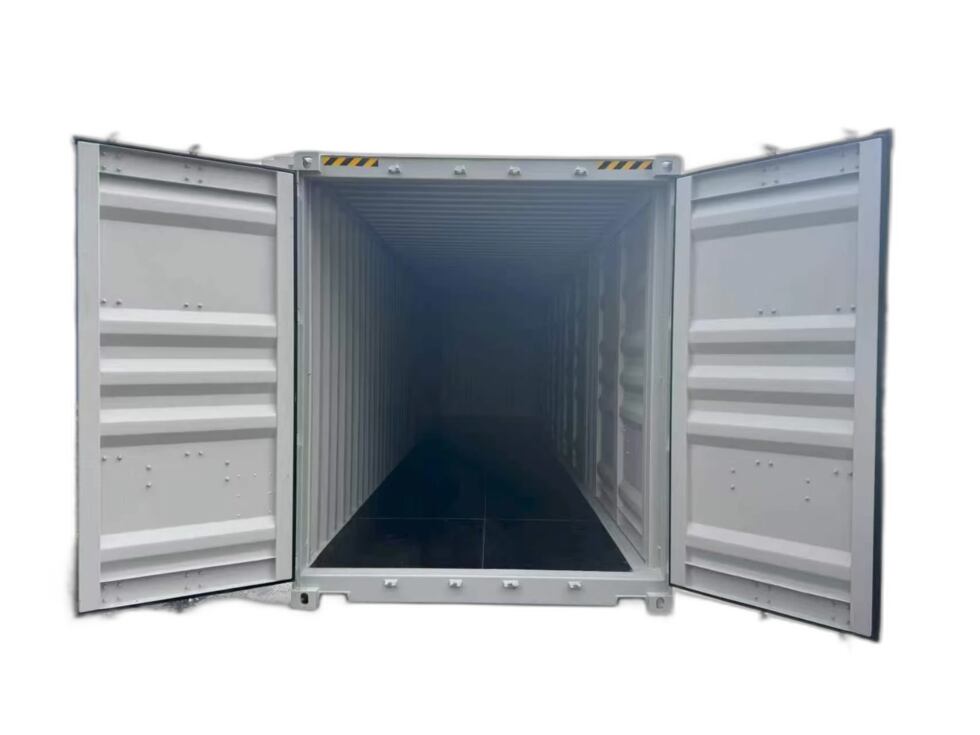

End doors open
